| Variable-Frequency Drives and Motor Control Panels | High-frequency switching noise, conducted emissions on power cables, radiated emissions, and motor-cable common-mode currents. | Input EMC filter, DC-link or output reactor, common-mode choke, shielded motor cable, and 360-degree cable-shield termination. | Keep motor cables separated from signal wiring; bond the enclosure at high frequency; minimize cable loops; follow the drive manufacturer’s filter and cable-length limits. | Factories, process plants, machine rooms, and electrically noisy production lines. | IEC 61800-3; IEC 61000-6-2; IEC 61000-6-4. | Conducted-emission measurement, radiated-emission testing, EFT/burst, surge, ESD, and conducted-RF immunity tests. |
| Industrial PLC and Remote I/O Cabinets | Transient coupling from contactors and motors, ground-potential differences, cable-borne interference, and electrostatic discharge. | 24 V DC input filtering, surge protection, shielded I/O cables, isolated communication interfaces, and a controlled cabinet bonding system. | Separate power, analog, digital, and high-current wiring; use short bonding conductors; avoid relying on signal cable shields as protective-earth conductors. | General industrial automation, packaging lines, water treatment, and material handling systems. | IEC 61131-2; IEC 61000-6-2; IEC 61000-6-4. | I/O functional checks during EFT, surge, ESD, RF immunity, and power-frequency magnetic-field testing. |
| Industrial Power Supplies and DC Systems | Switching harmonics, differential-mode noise, common-mode leakage, input transients, and ripple coupled into control circuits. | Two-stage input filter, differential-mode inductor, common-mode choke, surge protective device, and low-noise DC output filtering. | Select components for the actual voltage, current, leakage-current, and short-circuit conditions; maintain creepage and clearance distances. | Control cabinets, telecom rooms, production equipment, and distributed automation systems. | IEC 61000-6-2; IEC 61000-6-4; IEC 61204-3; IEC 61000-3-2 where applicable. | Input-current harmonic testing, flicker assessment where applicable, conducted emissions, ripple measurement, and transient immunity testing. |

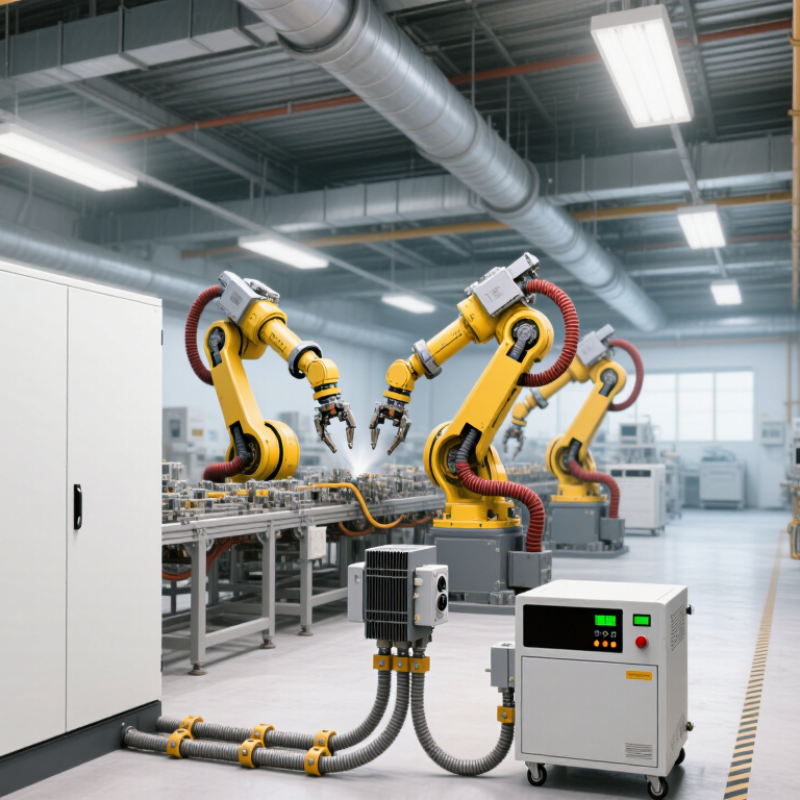

| Industrial Robots and Servo Systems | Fast PWM edges, encoder feedback errors, motor-cable radiation, regenerative braking transients, and interference between power and feedback circuits. | Shielded servo cables, ferrite or common-mode suppression, DC-bus filtering, isolated feedback interfaces, and low-impedance chassis bonding. | Route feedback cables away from motor and braking cables; use twisted pairs and proper termination; verify cable flex-life requirements for moving axes. | Automotive production, electronic assembly, machining, welding, and high-speed material handling. | IEC 61800-3; IEC 61000-6-2; IEC 61000-6-4; ISO 10218 for robot-system safety context. | Position-error monitoring during immunity tests, emission scans, encoder-integrity checks, and emergency-stop verification. |
| Industrial Ethernet and Fieldbus Equipment | Common-mode noise, ground loops, shield-current coupling, radiated RF exposure, and surge events on long outdoor or inter-building cables. | Galvanic isolation, shielded balanced cabling, appropriate surge protection, fiber-optic links for high-risk runs, and controlled grounding at cable entry points. | Use compatible cable categories and connector shielding; maintain separation from high-energy circuits; consider fiber where lightning or ground-potential differences are likely. | Large factories, substations, outdoor utilities, warehouses, and inter-building networks. | IEC 61000-6-2; IEC 61000-6-4; IEC 61158 where applicable; IEC 61000-4-5 for surge testing. | Packet-error monitoring, link-drop testing, shield-current checks, surge testing, EFT/burst, and radiated-RF immunity. |
| Measurement, Instrumentation, and Process-Control Devices | Low-level signal corruption, thermocouple or sensor drift, RF coupling, magnetic-field interference, and ground-loop errors. | Galvanic isolation, input low-pass filtering, twisted-pair shielded wiring, differential measurement, and carefully designed analog/digital ground separation. | Use shield termination appropriate to signal frequency and system grounding; prevent high-current returns from sharing sensitive measurement paths. | Process plants, laboratories, utilities, energy systems, and environmental monitoring installations. | IEC 61326-1; IEC 61000-6-2; IEC 61000-6-4; IEC 61000-4 series. | Accuracy and drift checks during ESD, RF, EFT, surge, conducted-disturbance, and magnetic-field immunity tests. |
| Welding, Induction, and High-Power Heating Equipment | High conducted and radiated emissions, rapid load changes, harmonic currents, flicker, and strong magnetic fields. | Input line reactor, harmonic mitigation, high-current EMC filtering, screened enclosures, short high-current paths, and dedicated bonding structures. | Design for thermal dissipation and fault current; coordinate filters with leakage-current limits and the facility’s power-distribution capacity. | Metal fabrication, foundries, heavy manufacturing, and high-power production areas. | CISPR 11; IEC 61000-3-2; IEC 61000-3-3 or relevant equipment-specific limits; IEC 61000-6-4 where applicable. | Harmonic and flicker measurements, conducted and radiated emissions, magnetic-field surveys, and coexistence checks with nearby control systems. |
| Outdoor Pumps, Compressors, and Utility Skids | Lightning-induced surges, long-cable coupling, motor-drive noise, moisture-related shielding degradation, and ground-potential differences. | Coordinated surge protection, weather-resistant screened enclosures, shielded power and signal cables, equipotential bonding, and fiber-optic communications where appropriate. | Coordinate protective devices by voltage and energy rating; provide short, direct earth connections and maintain enclosure ingress protection after installation. | Water and wastewater facilities, oil and gas support systems, agriculture, utilities, and remote outdoor sites. | IEC 61000-6-2; IEC 61000-6-4; IEC 61000-4-5; IEC 62305 for lightning-protection planning where applicable. | Surge testing, insulation and bonding checks, communication reliability tests, enclosure inspection, and operational testing under cable-transient conditions. |
| Medical and Laboratory Industrial Equipment | Sensitive measurement interference, leakage-current concerns, RF susceptibility, electrostatic discharge, and coupling from motors or pumps. | Low-noise power entry filter, isolated signal interfaces, shielded compartments, controlled protective bonding, and filtered ventilation openings. | EMC design must be coordinated with electrical safety, patient or operator protection, functional performance, and leakage-current requirements. | Laboratories, clean production areas, diagnostic facilities, and controlled technical rooms. | IEC 61326-1 for laboratory equipment; IEC 60601-1-2 for applicable medical electrical equipment; CISPR 11 where applicable. | Performance verification during ESD, RF immunity, EFT, surge, conducted RF, emissions, and power-frequency magnetic-field testing. |
